KTLSHA Series > 정제기

KTLSHA Series

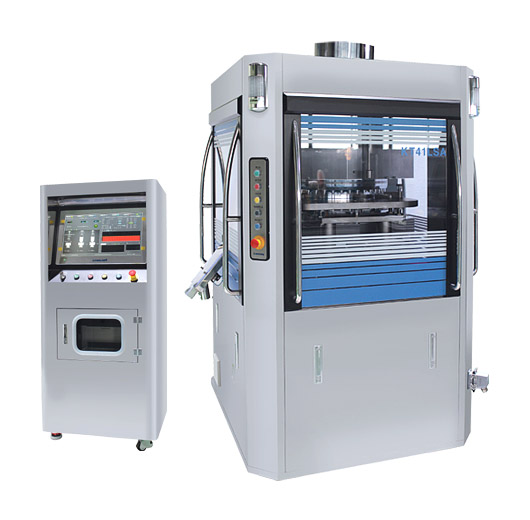

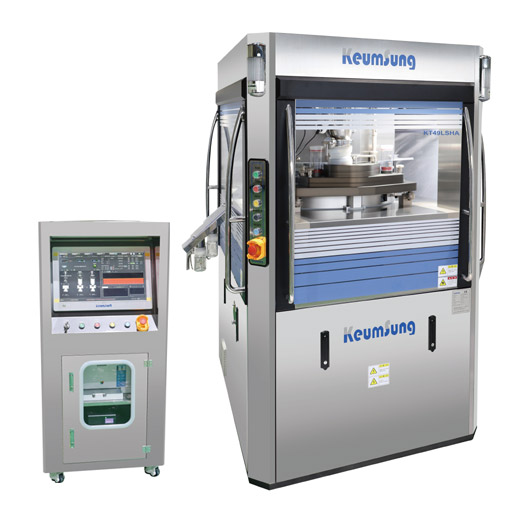

  • 품목 Rotary Tablet Press M/C (정제기)
  • 항목Large- sized Rotary Tablet Press Machine
  • 모델KT41LSHA | KT49LSHA | KT59LSHA
목록으로

상세정보

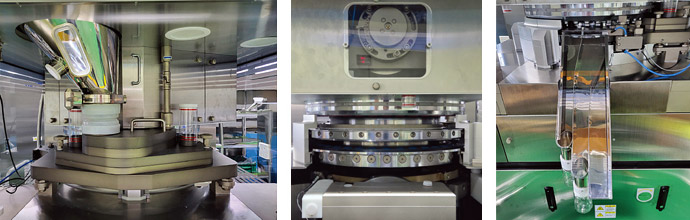

▶ Ensure stable production and low vibration by the molded frame structure.
▶ Quiet and smooth driving by precision rails and turret.
▶ The dust cover around the table can keep the equipment clean.
▶ he functional switches and signals are integrated in 15" touch screen to make it possible that machine is convenient operated.
▶ Lower Forming roll and weight rail can be adjusted by the servo-motor through the touch screen controls.
▶ AWC automatically adjusts the filling depth and can reject the faulty tablets.
▶ Operating data is recorded in a database when operating the A.W.C..

ktmca_ps001.jpg ktmca_ps002.jpg

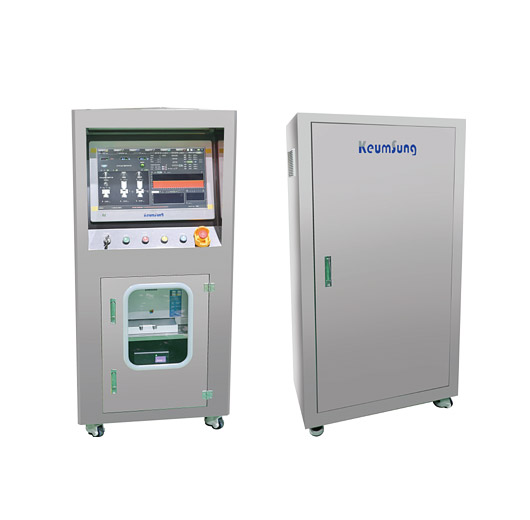

AWC(Automatic Weight Controller)
ktmca_ktmca_awc_01.jpg ktmca_awc_02.jpg

Model No. KT41LSHA KT49LSHA KT59LSHA
No. of station 41
 49 59
Die table speed(r.p.m)
 10 - 60 10 - 70
 10 - 70
Tablets/hr.
 24,600-147,600 29,400-205,800 35,400-247,800
Type of tooling
 EU-D EU-B EU-BB
Max. tablet dia.(mm)
 25 16 13
Max. pressure(ton) Pre 10 / Main 10 Pre 10 / Main 10 Pre 10 / Main 10
Max. filling depth(mm)
 18
 18 18
Main motor(kW) 15 15 15
Dimension(W×D×Hmm)
 1150×1440×1900 1150×1440×1900 1150×1440×1900
Weight(kg)
 5,300 5,300 5,300

Technical specification can be rectify without prior notice.

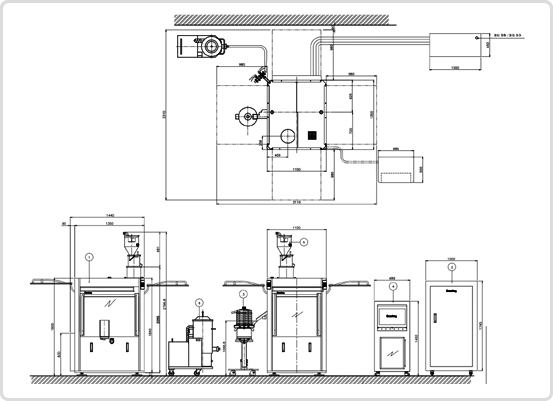

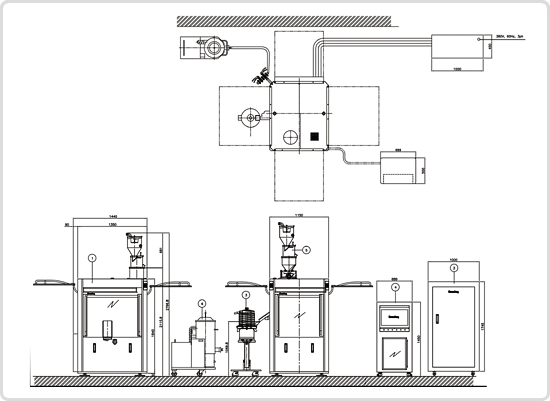

Dimension

Optional Items
op_powder.jpg op_deduster.jpg op_dust.jpg
Open Feeder
C.A.F Unit
Powder Loading Unit
Deduster
Dust Collector
